OBD2 OBD 2 Engine Scanner System Reset ABS, SRS, BRT, DPF, EPB, OIL, SAS w

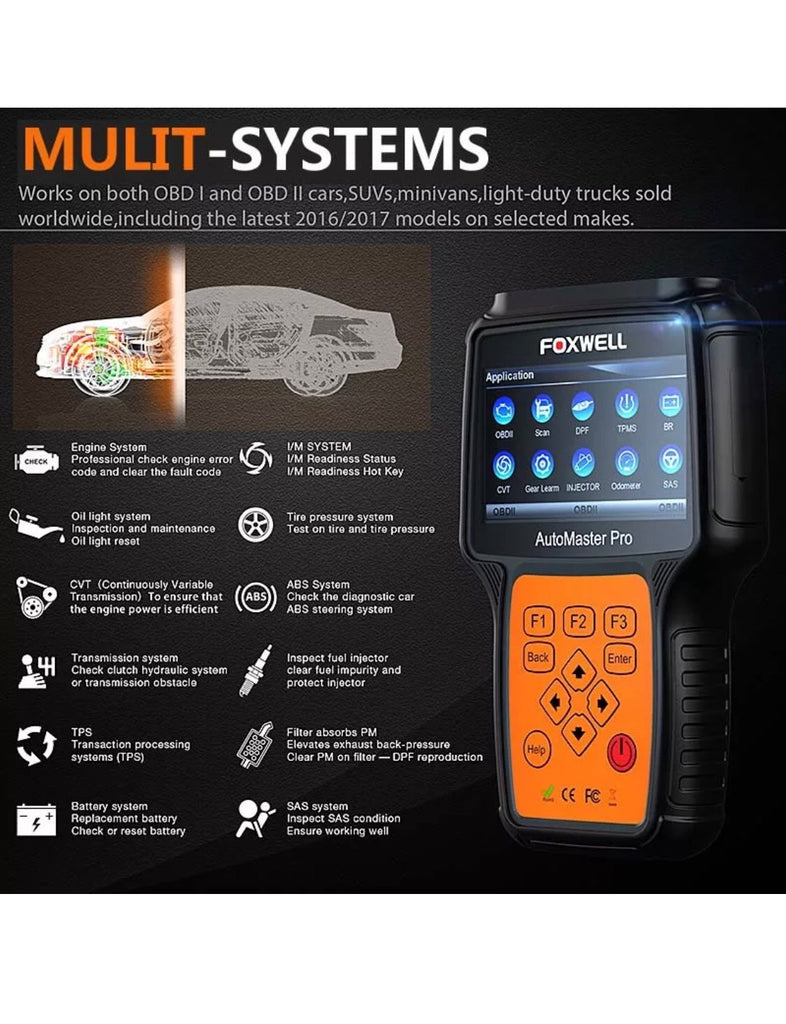

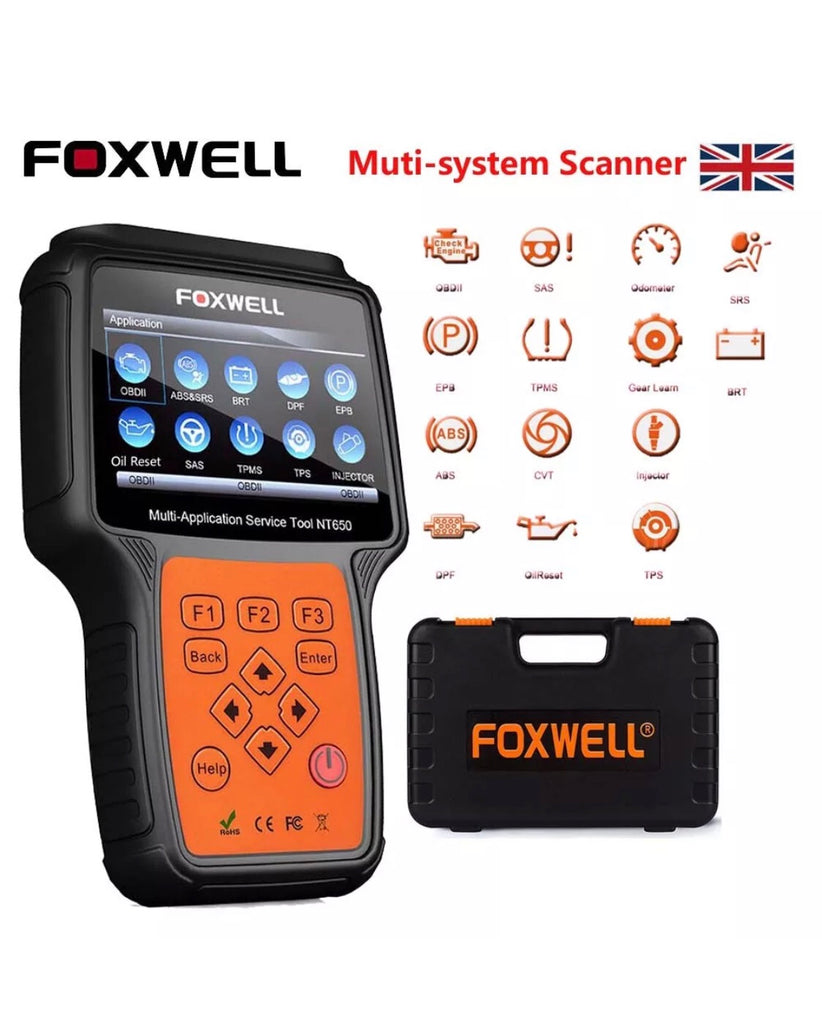

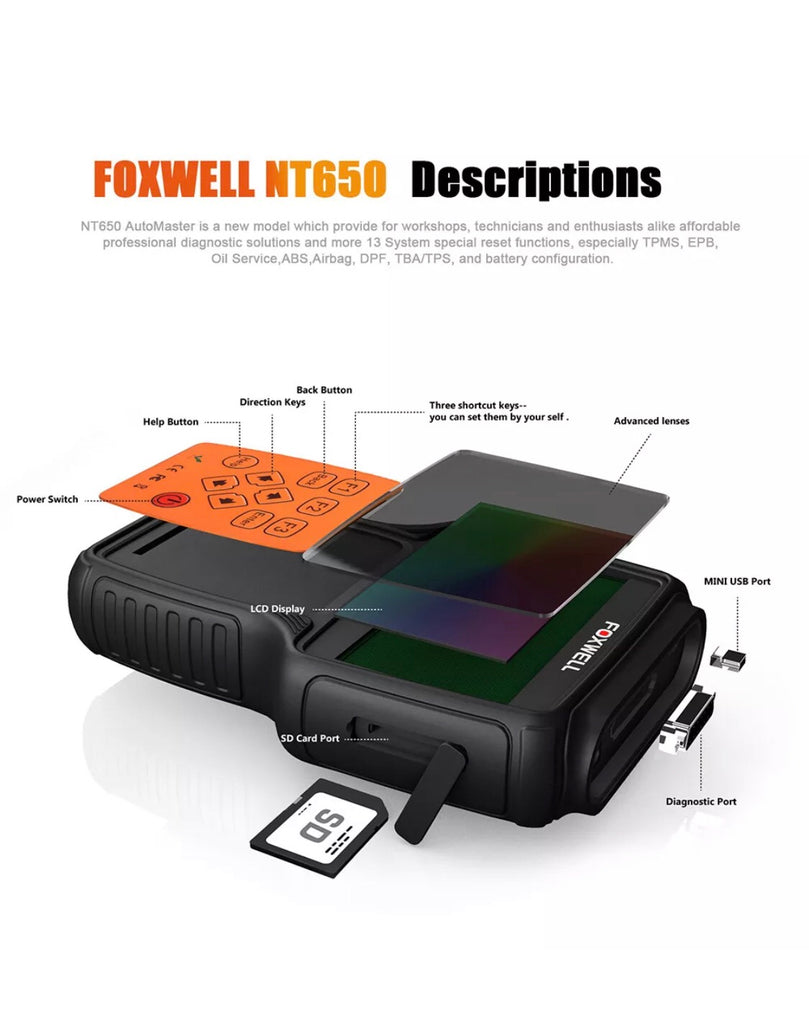

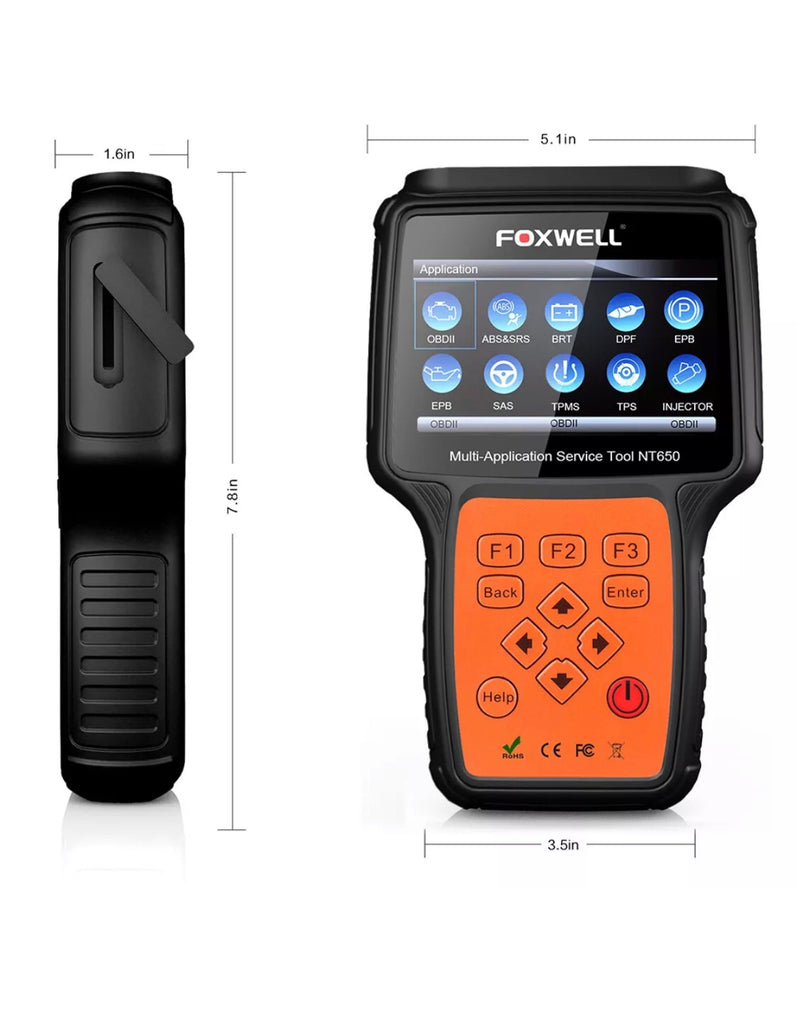

The Foxwell NT650 is power scanner which with special functions, works for

ABS, SRS, BRT, DPF, EPB, OIL, SAS TPMS, TPS, Injector System

FAST DELIVERY SENT VIA ROYAIL MAIL 48HRS

Service Functions ：

1 Oil Service Reset

Oil Light Reset menu allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

2 Electronic Parking Brake

EPB Service menu allows you to perform the service and maintenance of brake systems,including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement, on multiple brands of vehicles where electronic brake systems are fitted.

3 Battery Replacement (BRT)

BRT menu lets you to new battery validated, how to clear faults from the dashboard and display current battery details of the vehicle such as Audi, BMW, Citroen, Peugeot, Seat, Skoda, Volvo,VW, Ford,Infiniti,Jaguar, Land Rover, Lexus,Mini, Mitsubishi,Nissan, Holden, Hyundai, Mzda, Opel, Porsche, Renault, Toyota.

4 Diesel Particulate Filter (DPF) Regeneration

DPF Regeneration menu let you perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. When a DPF regeneration cycle is completed, the DPF light automatically goes off.

5 Throttle Body Alignment (TBA/TPS)

It’s very common to see a customer pull into the shop with a Volkswagen or Audi that just will not idle correctly. One of the possible causes is that the throttle position is not known. When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

6 Steering Angle Sensor (SAS) Calibration

SAS Calibration menu let you perform calibration of the Steering Angle Sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. On successful calibration of the sensor, its fault memory is automatically cleared.

7 Tire Pressure Monitoring System (TPMS) Programming

TPMS Service menu allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.

8 Gear Learning

1.Crankshaft position sensor adaptive learning. The crankshaft position sensor learns crankshaft tooth machining tolerance and save to the computer to more accurately diagnose engine misfires.If tooth learning is not performed for a car equipped with Delphi engine, the MIL turns on after the engine is started. The diagnostic device detects the DTC P 1336 'tooth not learned'. In this case, you must the diagnostic device to perform tooth learning for the car. After tooth learning issuccessful, the MIL turns off.

2.After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'tooth not learned' is present, tooth learning must be performed

9 CVT

This function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced.

10 ODOMETER

This function allows you to revise the date of odometer and write the original date into new odometer.

11 INJECTOR CODING

This function is to reset and match the date after injector is replaced.

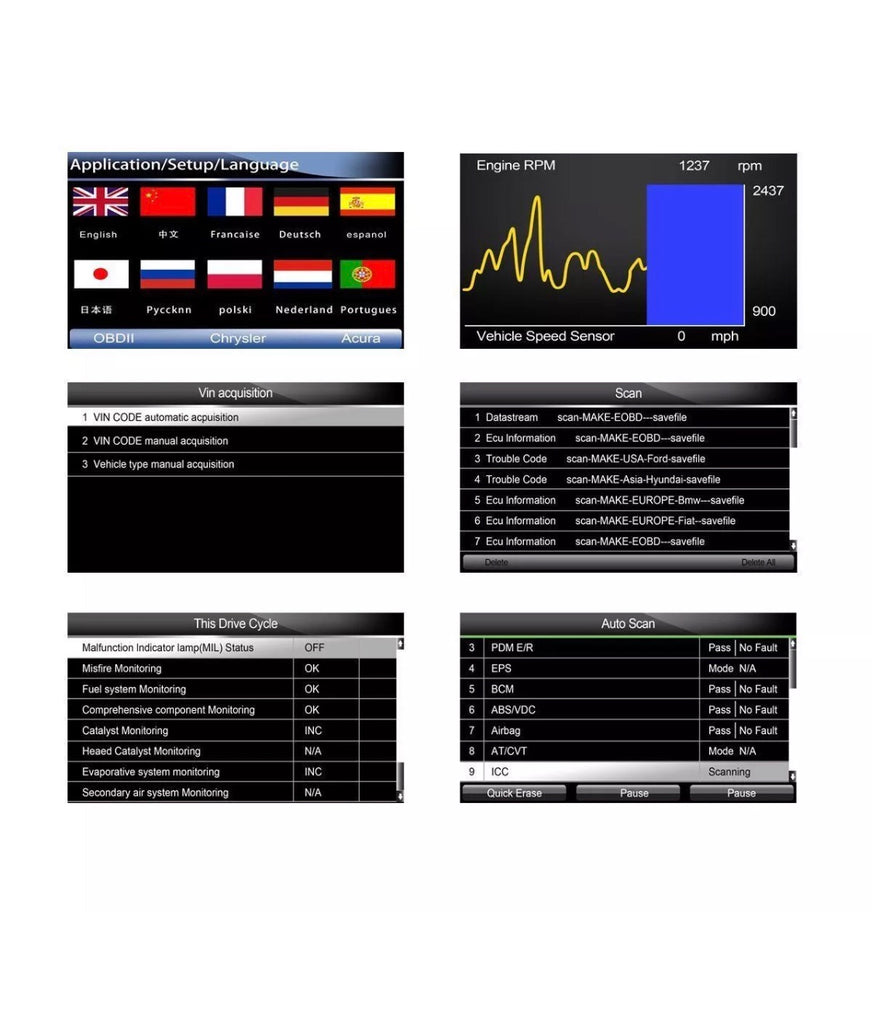

OBDII/EOBD Functions：

OBD-II/EOBD menu lets you access all OBD service modes. According to ISO 9141-2, ISO14230-4, and SAE J1850 standards, the OBD application is divided into several sub programs,called ‘Service $xx’. Below is a list of OBD diagnostic services:

● Service $01 - request current powertrain diagnostic data

● Service $02 - request powertrain freeze frame data

● Service $03 - request emission-related diagnostic trouble codes

● Service $04 - clear/reset emission-related diagnostic information

● Service $05 - request oxygen sensor monitoring test results

● Service $06 - request on-board monitoring test results for specific monitored systems

● Service $07 - request emission-related diagnostic trouble codes detected during current or

last completed driving cycle

● Service $08 - request control of on-board system, test or component

● Service $09 - request Vehicle Information

● Service $0A - Reads permanent DTCs

Foxwell NT650 Support Vehicle Coverage:

European (2001-now ):

for Abarth, for Alfa-Romeo, for Audi, for AstonMartin, for BMW, for Bugatti, for Bentley, for Citroen, for Dacia, for EU Ford, for Fiat, for Jaguar, for Lancia, for Land Rover,for Maserati, for Maybach, for Mercedes Benz,for Mini, for Opel, for Peugeot, for Porsche, for Renault, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Vauxhall, for Volvo, for VW

America (1996-now ) :

For Chrysler, for Jeep, for Dodge, for Ram, for Ford, for Lincoln, for Mercury, for GM ( including brazilian car maker ), for Chevrolet, for Cadillac, for Buick

Asia(2003 to now ):

for Acura, for AU Ford (For Australian Market Only), for Daewoo, for Honda, for Holden (For Australian Market Only), for Hyundai, for Infiniti, for Isuzu, for Kia, for Lexus, for Mahindra, for Mazda, for Mitsubishi, for Nissan, for Perodua(For Malaysian Market Only), for Proton(For Malaysian Market Only), for Scion, for Subaru, for Suzuki, for TATA , for Toyota,

Chinese (2009-now):

For BYD, for Brilliance, for Chery, for Chery_ne, for Geely, for Great Wall, for Karry, for Rely, for Riich.

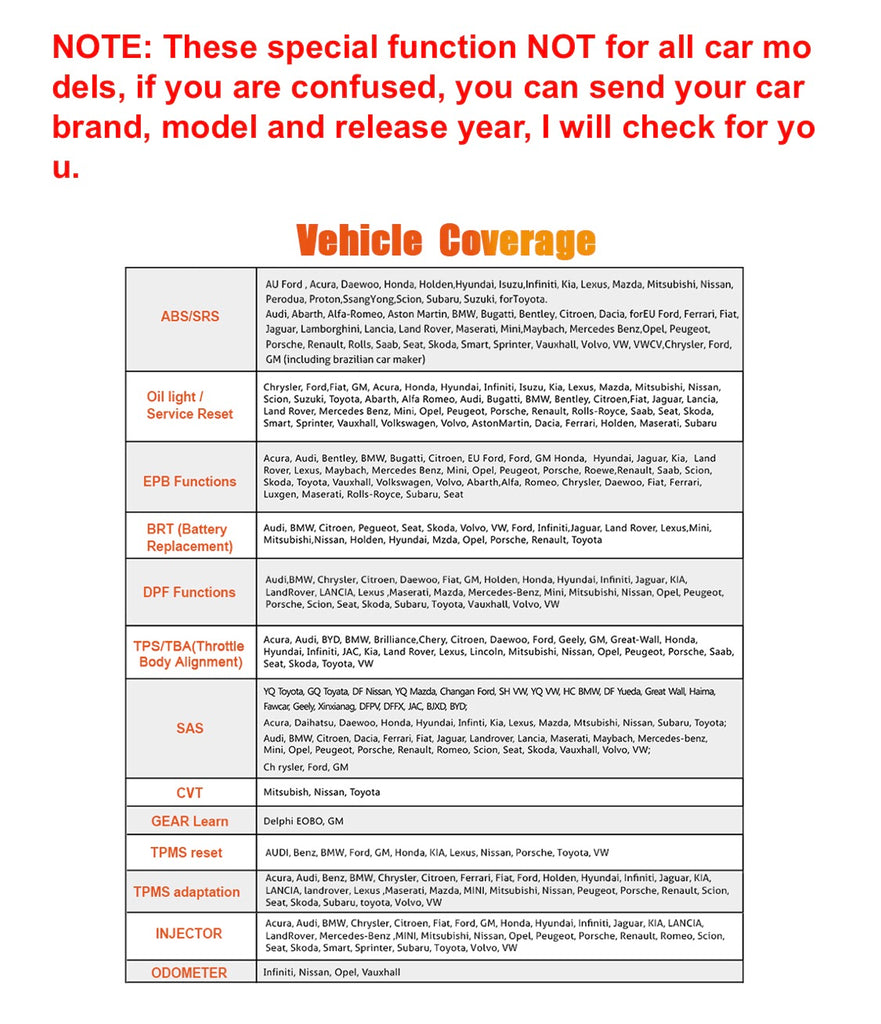

Foxwell NT650 Special Functions Support Car List:

NOTE: These special function NOT for all car models, if you are confused, you can send your car brand, model and release year, I will check for you.

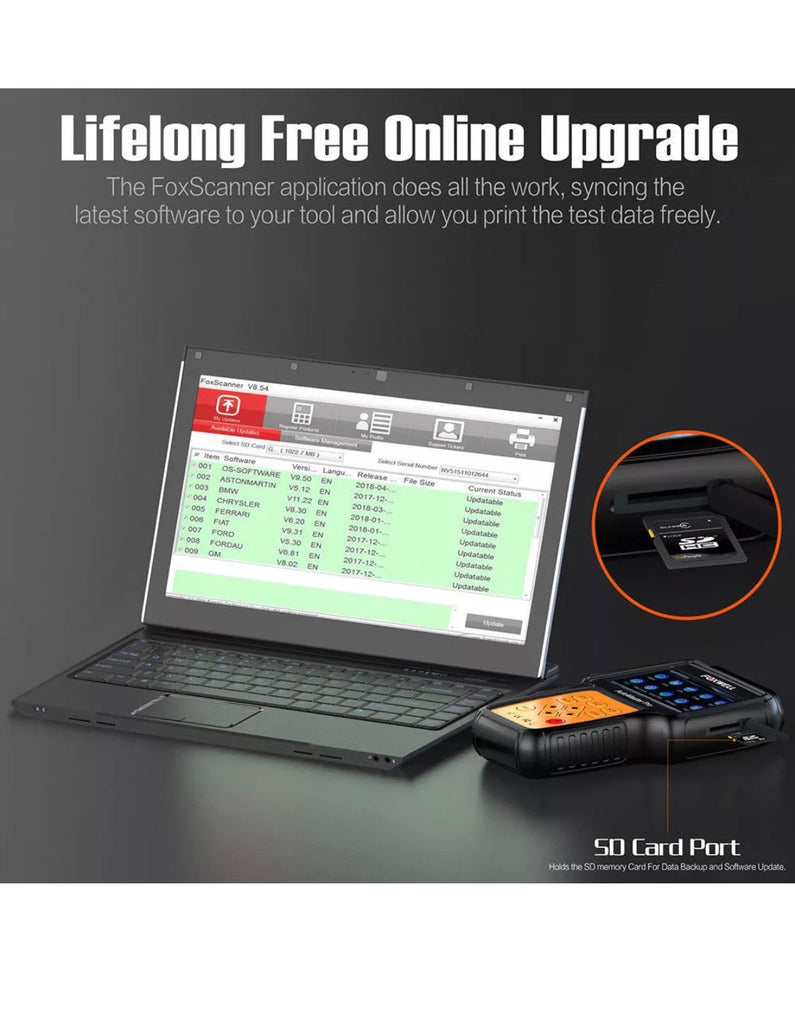

How to update NT650 Scanner?

1. Go to the Foxwell official website :Choose your product ,Under the page,click the Download,then download FoxScanner Installer.zip update clients software.

2. Register foxwell account and complete the related information at FoxScanner client software .

3. Plug SD memery card into card reaqder and connect with your Windows laptop or PC.

4. Fill in the S/N number and password then you can register your machine successful.

5. Update:click “My updates”,select the correct S/N of your product,and click ” update” button.

6. Wait several minutes, update will be done, enjoy new software.

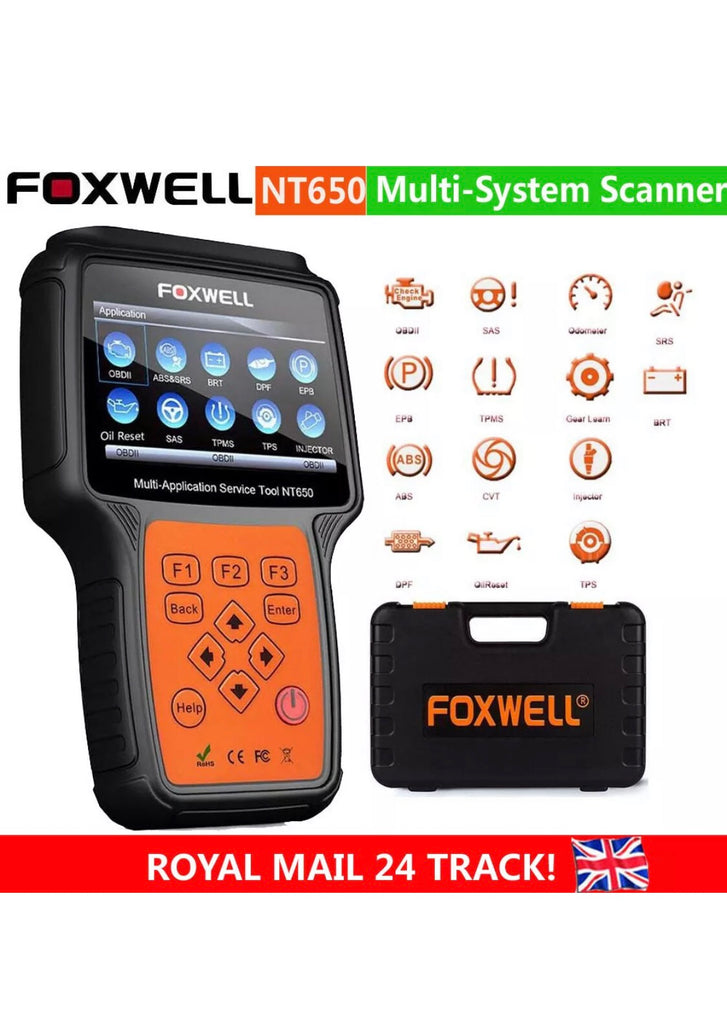

Package List:

1 pc x Foxwell NT650 OBD2 Diagnostic-Tool

1 pc x User’s Guide

1 pc x Memory Card

1 pc x USB Cable

1 pc x Diagnostic Cable

1 pc x Blow Molding Case
